Machine Comparison

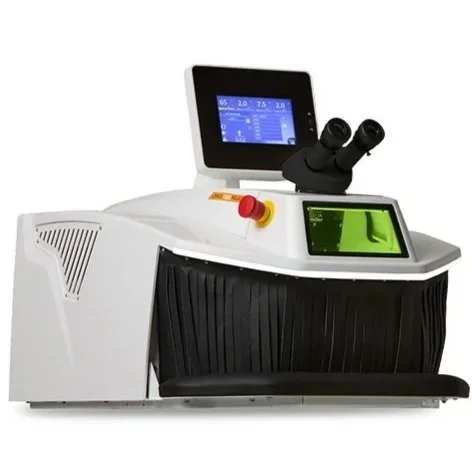

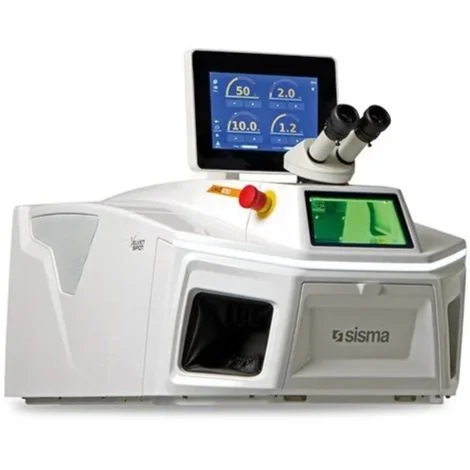

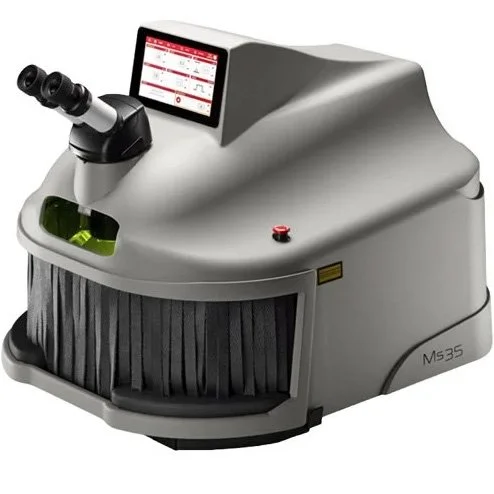

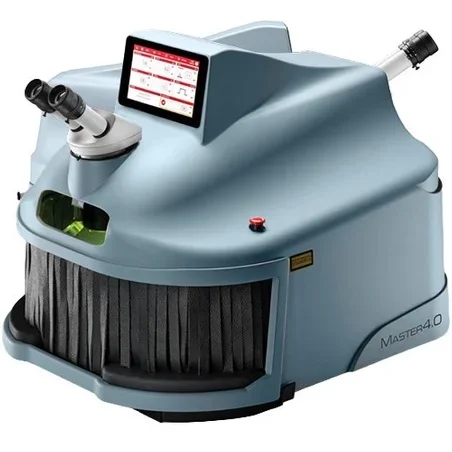

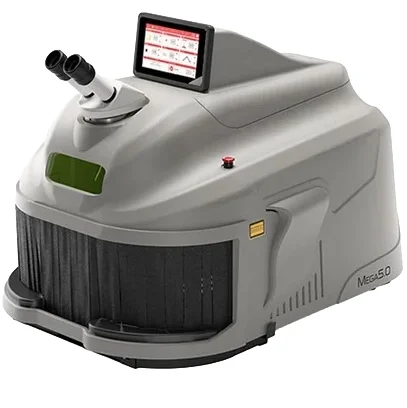

Machine Model DaDo 2.0 Onyx MS 35 / MS 80 SISMA LM-D Ready Master 4.0 / Plus Mega 5.0 SISMA LM-DT Dual Mega 6.0
Preview DaDo 2.0 Onyx MS Series SISMA Ready Master 4.0 Mega 5.0 SISMA Dual Mega 6.0
Number of Users 1-2 1-2 1-2 1-2 1-2 2+ 2+ 2+
Production Workload Low Low-Med Low-Med Med-High Med-High High High High
Touch Screen — ✓ ✓ ✓ ✓ ✓ ✓ ✓
Energy Power (J) 15 J 35 J 35 J / 80 J 185 J / 225 J 225 J 250 J 225 J / 262 J 275 J
Peak Power (kW) 2.5 kW 3.5 kW 3 kW / 4 kW 7.5 kW / 9 kW 9 kW 10 kW 9 kW / 10.5 kW 11 kW
Microscope (X10) ✓ ✓ ✓ Leica Leica Leica Leica Leica
Min Spot Size (mm) 0.2 mm 0.2 mm 0.2 mm 0.2 mm 0.2 mm 0.2 mm 0.1 mm 0.3 mm
Warranty 2 Years 1 Year 3 Years 3 Years 3 Years 3 Years 3 Years 3 Years
Cooling System Water / Air Water / Air Water / Air Water / Air Water / Air Double Water/Air Double Water/Air Double Water/Air
Integrated Camera — ✓ — ✓ ✓ ✓ ✓ ✓
HDMI / USB Port — — — — ✓ ✓ — ✓
Spot Technology — — — Smart Spot Ultra Spot* Smart Spot Ultra Spot —

*Plus Model Only

Laser Welders
