Industrial Output
-
![]()

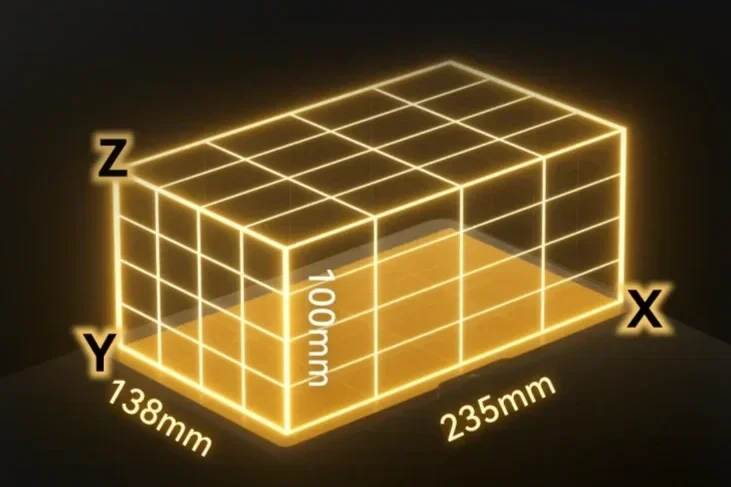

Build Volume
-
![]()
Industry-Leading Wax Utilisation
-
![]()

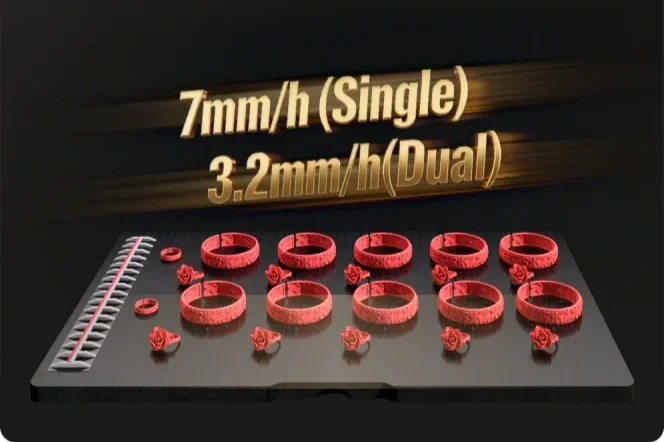

Impressive Printing Speed
-
![]()
Built-in HD Camera
-
![]()
13-inch HD Touchscreen
-
![]()

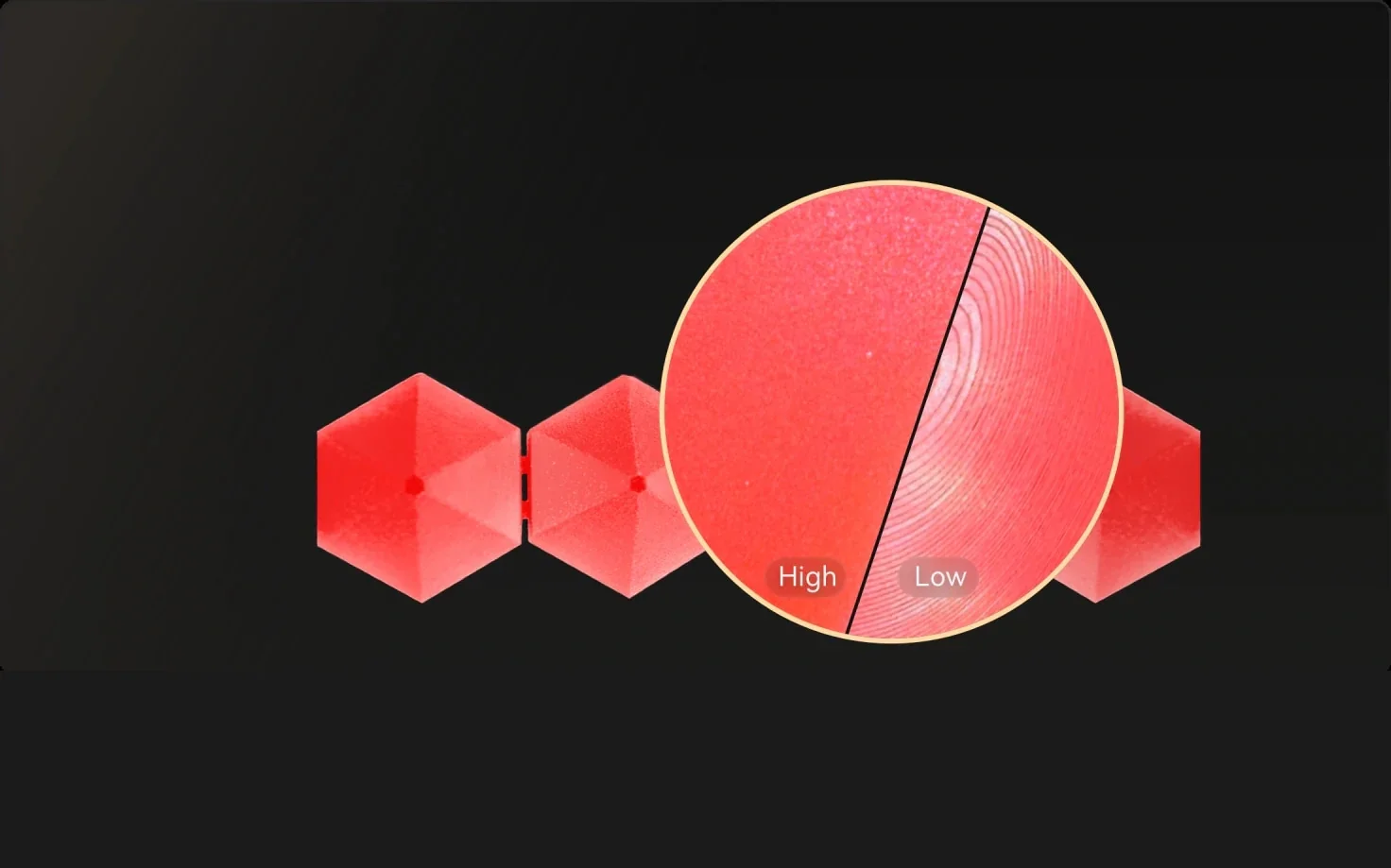

Industry-Leading Resolution
Product Details
Key Performance Features:
Ultra-High Resolution: Prints at a stunning 2900 × 2900 × 1700 DPI resolution with ultra-fine 15μm layers for flawless surface finishes that require minimal post-processing.
3x Faster Print Speeds: Leverages advanced MultiJet technology to print up to three times faster than previous generations, drastically shortening your production cycle.
Unmatched Reliability: Features a premium industrial 2000-jet printhead designed to actively prevent clogs, minimizing downtime and costly replacements.
Smart Honeycomb Support Structure: Uses an advanced honeycomb support design to reduce total wax weight, speed up dewaxing times, and lower alcohol consumption.
Maximum Cost Savings: Run a highly profitable production line with up to 48% less spend on build material and 78% less spend on support material compared to closest competitors.
Flexible Support Material: High-grade wax support allows for secure stone-setting directly in the wax pattern and handles complex, ultra-fine filigree designs with ease.
-
Engineered to fit into your workspace without overwhelming it. Measuring only 31" × 20" × 28", this high-output benchtop printer delivers professional, production-level casting results while requiring minimal physical floor space.
-
Created to maximize your laboratory or studio's efficiency. This system optimises material usage and precision to eliminate waste, lower your overhead, and significantly reduce your total cost per printed part.
-
Flashforge's non-toxic, 100% pure wax material is perfect for investment casting applications such as jewellery, crafts, precision parts, and aerospace equipment. They offer excellent strength, zero ash content, and complete dimensional stability with added flexibility for stone-in-place casting.
Technical Parameter
WJ51C Specifications
| Print Technology | MultiJet Printing (MJP) |
| Build Volume | 235 × 138 × 100 mm |
| Resolution | 2900 × 2900 × 1700 DPI; layer thickness: 15 μm |
| Dimensional Accuracy | ± 0.04 mm / 20 mm |
| Material Utilisation | Part wax utilisation rate ≥ 57% |
| Print Speed | Single-channel: 7 mm/hour; Dual-channel: 3.2 mm/hour |
| Slicing Software | WaxJetPrint |
| Supported Input Formats | STL, SLC |
| Connectivity | RJ-45, USB (Wi-Fi expandable) |
| Software Supported Operating Systems | Windows 10 / Windows 11 (64bit) |
| Power Supply | AC 100–240V, 50–60Hz, 2.2KW |
| Operating Environment | Temperature: 18–26°C; humidity: 30–70% |
| Equipment Dimensions | 865 × 510 × 654 mm |
| Equipment Weight | 115 kg |
| Packaging Dimensions | 1020 × 660 × 905 mm |
| Packaging Weight | 140 kg |
Material Specifications
| Material Name | FFWJ1200 | FFMS3200 |
| Material Type | Part material | Support material |
| Net Weight | 72g/block | 180g/block |
| Composition | 100% wax | Wax support material |
| Color | Red | White |
| Density@90°C (Liquid) | 0.79g/cm³ | 0.79g/cm³ |
| Melting Point | 68°C | 55°C |
| Softening Point | 63°C | / |
| Volumetric Shrinkage | 1.1% | / |
| Linear Shrinkage | 0.7% | / |
| Needle Penetration | 9 | / |
| Ash Content | <0.01% | / |
| Description | High-precision castable wax material | Hands-free dissolvable support material |
* Actual wax utilisation depends on the model design; the stated rate reflects internal test averages.
