FLASHFORGE WaxJet 530 XHD Wax 3D Printer

Name: Flashforge WaxJet 530 XHD Wax 3D Printer — Freeform Fabrication UK
Brand: Freeform Fabrication UK
Availability: OutOfStock

£0.00

sold out

Industrial High-Speed & High-Resolution 100% Wax 3D Printer for Production & Casting

Maximise your production capacity and minimise your running costs with the Flashforge WaxJet 530 XHD. Engineered specifically for high-volume jewelry manufacturing and dental casting bureaus, the WaxJet 530 sets a new industry benchmark for speed, precision, and material efficiency.

By combining the ultra-high 2900 × 2900 × 1700 DPI resolution of the WaxJet 510 with the advanced triple-printhead system of the WaxJet 400 HD, this machine prints up to three times faster than previous generations—enabling a maximum output speed of 6.35 mm of wax per hour.

View full specifications & features ↓

Industrial High-Speed & High-Resolution 100% Wax 3D Printer for Production & Casting

View full specifications & features ↓

Ultra-High Performance

Stable & Durable

Patented self-developed wax circulation control system, 365*24-hour high-intensity testing, more durable printhead.
High Wax Material Utilisation Rate

Stable output with a wax material utilisation rate of 58%-60%, advanced technology and reliable printing improve utilisation, reduce waste, and maximise production efficiency.
Intelligent Monitoring

Wi-Fi connectivity & 2K HD camera, monitor printing in real time for worry-free production
Exceptionally Easy to Electroplate

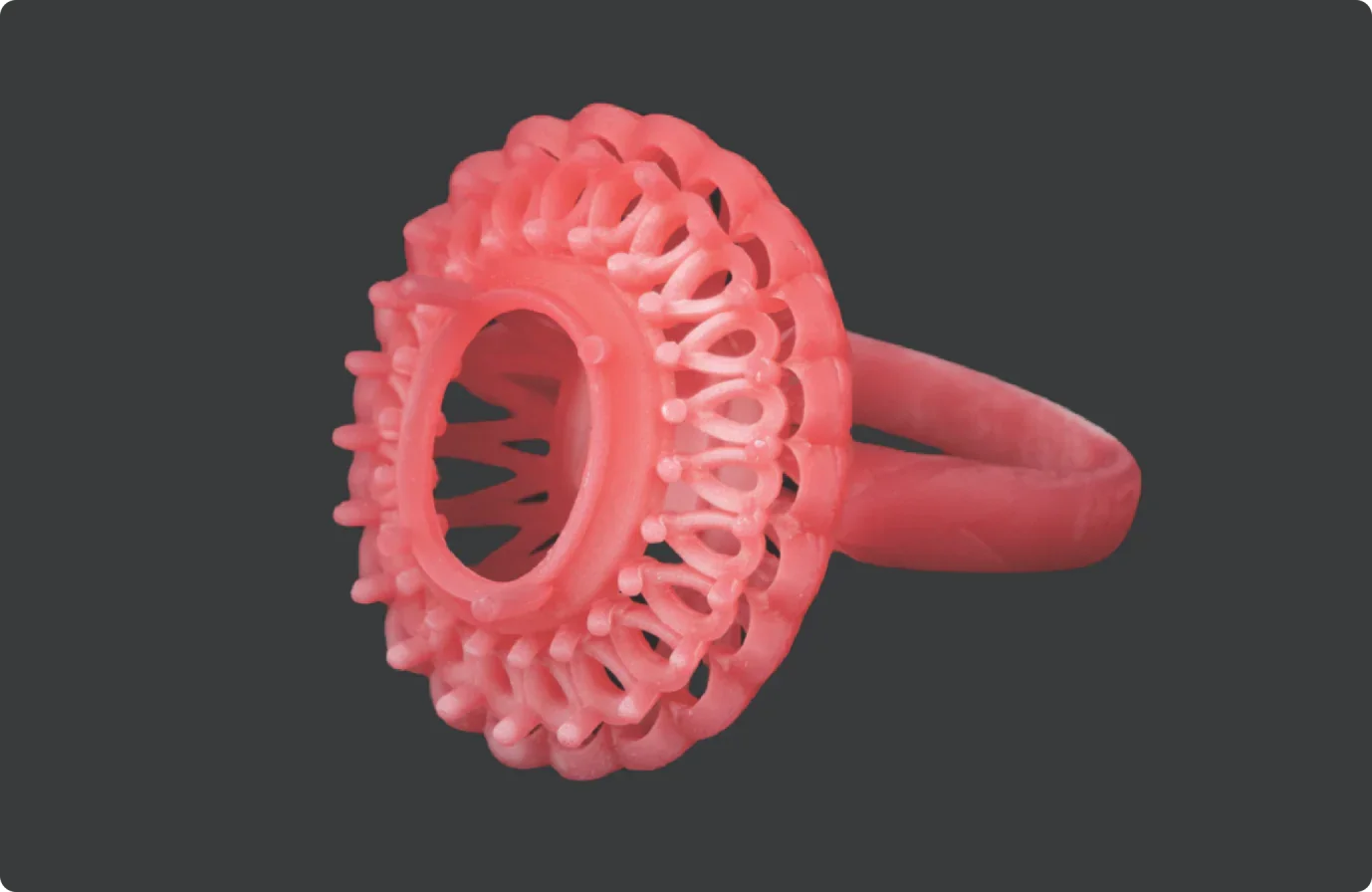

The red wax mold made from red wax perfectly adheres to electroplated silver coating.
Higher Speeds

Each unit delivers an average monthly wax output of up to 12 kg, setting a new benchmark for industrial-grade jewellery pattern production.

Product Video

Product Details

Key Performance Features:

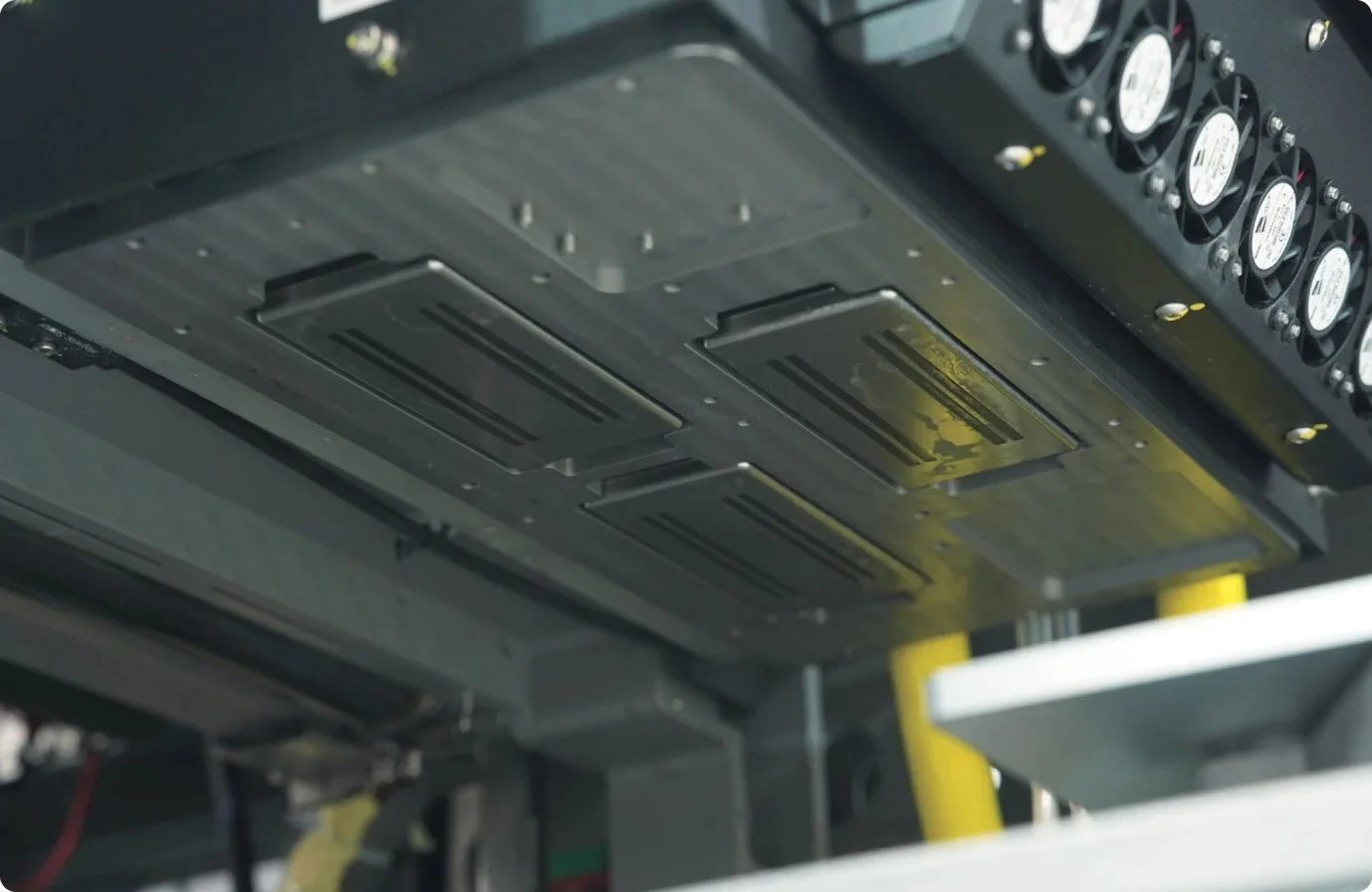

Three Printheads, Quicker Production: The synchronised triple-head MultiJet Printing (MJP) system drastically shortens your turnaround times. Each unit delivers an average monthly wax output of up to 12 kg, perfect for 24/7 continuous industrial workflows.
Exceptional Resolution, Flawless Castings: An ultra-fine 15 μm layer thickness reduces visible "grow lines" to near invisibility. This dramatically cuts down post-casting metal polishing times by 25% to 33%, saving your team precious time and preserving expensive metal weight.
Massive Material Savings: The WaxJet 530 operates with an incredibly efficient wax material utilization rate of 58% to 60%, using significantly less build material than competing industrial systems.

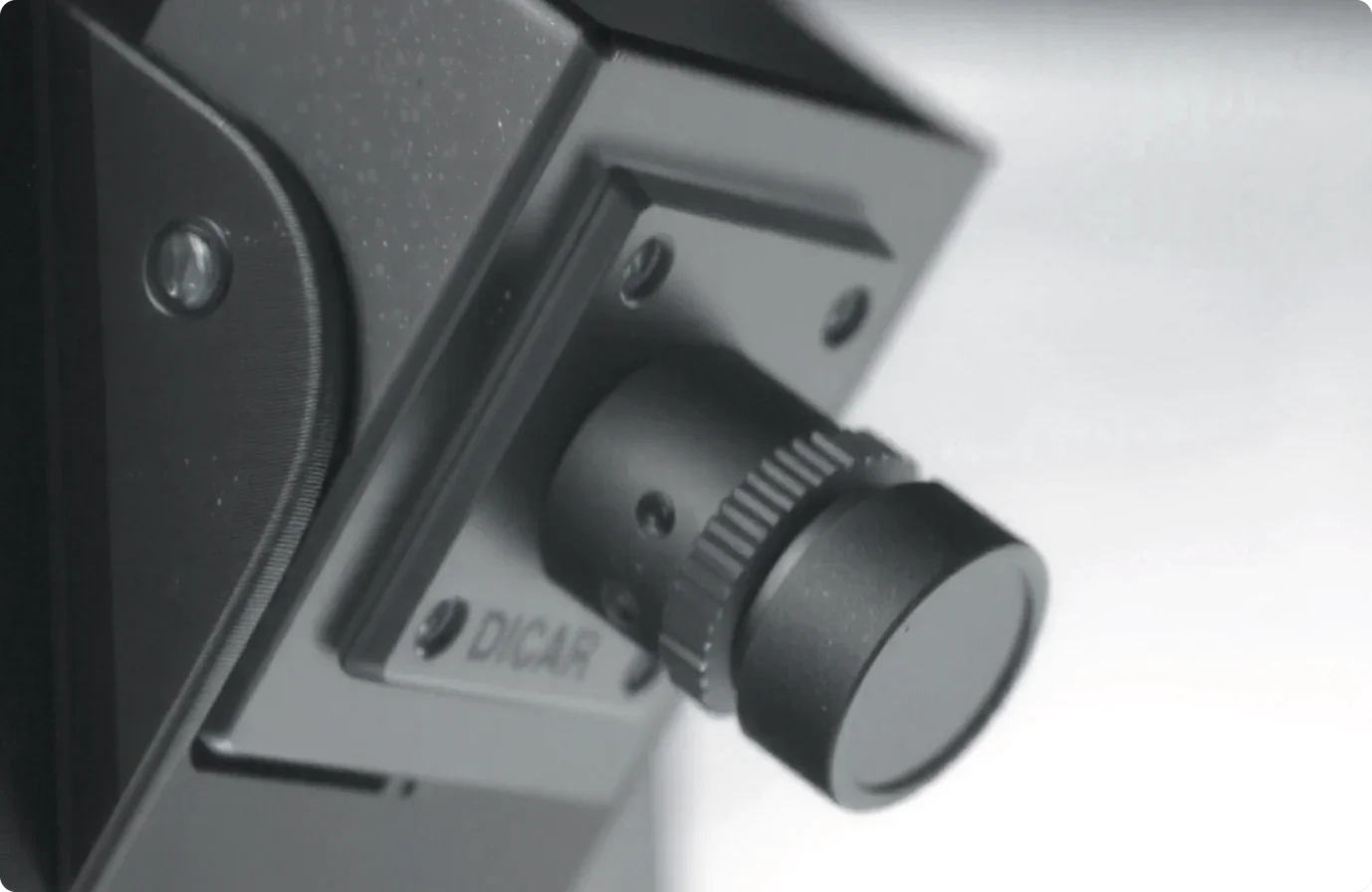

Smart Remote Monitoring: Keep track of your batch runs from anywhere. Features an integrated, Wi-Fi-connected 2K HD camera for real-time print monitoring and peace of mind.

Comprehensive Post-Sale Technical Support:

At Freeform Fabrication, we supply more than just hardware. Every Flashforge system is backed by our signature UK technical support, application guidance, and maintenance care to ensure your production pipeline remains uninterrupted.

Availability: Available for pre-order.
Pricing: Custom system configuration available upon application.Ready to transform your casting workflow or request sample prints?

Request a Quote using our form below

Technical Parameter


            Printing Technology
            MultiJet Printing (MJP)

            Build Volume
            289 × 208 × 150mm

            Printhead
            3 piezoelectric printheads

            Dimensional Accuracy
            20mm ±0.04mm

            Resolution
            2900 × 2900 × 1700DPI, layer thickness: 15μm

            Material utilization
            Material ≥55%

            Printing Speed
            ≥6.35mm/h , 15μm layer

            Slicing Software
            WaxJetPrint

            Supported File Format
            stl, slc

            Connectivity
            RJ-45 / USB / WI-FI

            Supported Operating Systems
            Windows 7 / Windows 10 (64bit)

            Working Environment
            Temp 18–26°C, Humidity 30–70%

            Equipment Dimensions
            1352 × 775 × 1600mm

            Net Weight
            480kg

            Package Size
            1530 × 900 × 1837mm

            Gross Weight
            630kg

            Material Name
            FFWJ1200
            FFWS3200

            Material Type
            Part Wax
            Support Wax

            Net Weight
            3.0kg/bottle
            3.6kg/bottle

            Composition
            100% wax
            Wax support material

            Color
            Red
            White

            Density@90°C(Liquid)
            0.79
            0.85g

            Melting Point
            68°C
            55°C

            Softening Point
            63°C
            -

            Volumetric Shrinkage
            1.1%
            -

            Linear Shrinkage
            0.7%
            -

            Needle Penetration Hardness
            9
            -

            Ash Content
            <0.01%
            -

            Description
            High-precision castable wax
            Hands-free dissolvable support wax
