NANO 30W Pen Parameters & Preset Guide
PRESET PARAMETERS
This is a section showing you the parameters for each of the pre-sets for different types of metal, cutting and cleaning cycles. These settings are based on a 30W fiber laser.
| Pen Number |
Metal / Alloy / Action |
Loop Count |
Speed (mm/second) |
Power (%) |
Frequency (KHz) |
Wobble Diameter (mm) |
Wobble Distance (mm) |
| 0 |
Platinum |
1 |
200 |
20 |
30 |
N/A |
N/A |
| 1 |
Yellow Gold |
1 |
400 |
35 |
30 |
N/A |
N/A |
| 2 |
White Gold |
1 |
400 |
30 |
30 |
N/A |
N/A |
| 3 |
Red Gold |
1 |
400 |
30 |
30 |
N/A |
N/A |
| 4 |
Silver |
1 |
400 |
70 |
30 |
N/A |
N/A |
| 5 |
Brass |
1 |
600 |
70 |
30 |
N/A |
N/A |
| 6 |
Steel |
1 |
400 |
25 |
30 |
N/A |
N/A |
| 7 |
Cut 0.6mm |
10 |
80 |
100 |
30 |
0.08 |
0.04 |
| 8 |
Cut 0.8mm |
20 |
70 |
100 |
30 |
0.08 |
0.04 |
| 9 |
Cut 1mm |
30 |
60 |
100 |
30 |
0.1 |
0.04 |
| 10 |
Cut 1.2mm |
50 |
50 |
100 |
30 |
0.12 |
0.04 |
| 11 |
Cleaning |
1 |
1000 |
15 |
60 |
N/A |
N/A |
| 12 |
Bitmap |
1 |
400 |
50 |
30 |
0.1 |
0.08 |
| 13 |
Cut Top |
10 |
70 |
100 |
30 |
0.1 |
0.05 |
| 14 |
Cut Middle |
2 |
60 |
100 |
30 |
0.08 |
0.04 |
| 15 |
Cut Bottom |
10 |
50 |
100 |
30 |
0.05 |
0.03 |
Click to see the factory-recommended PEN parameters for marking and cutting with the NANO 30W engraver.
Click to view or download the factory-recommended PEN parameters for marking and cutting with the NANO 60W engraver.

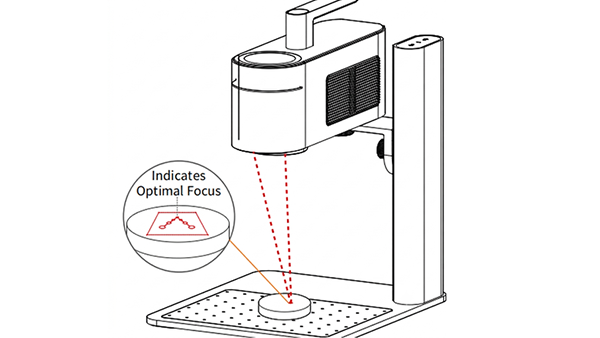

Use this link to the Laser Marking Focus Test Quick Guide to easily find and calibrate optimal focal height on your NANO engraver.
